Home ProductsDeep Groove Ball Bearing 6000 Series

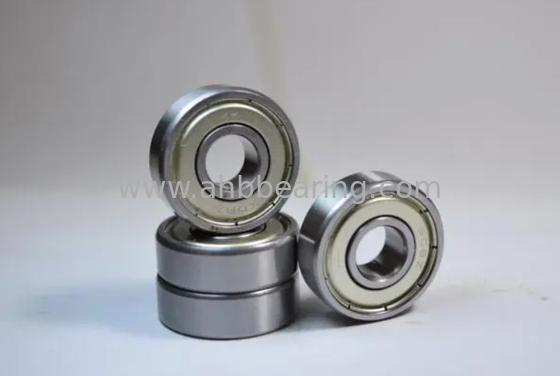

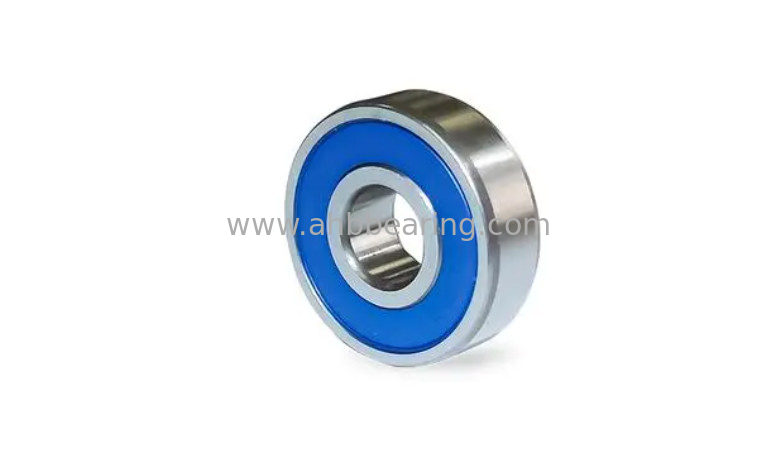

Deep Groove Ball Bearing 608ZZ/2RS FOR power Tools with P6 Z3V3 and Special Seals

Deep Groove Ball Bearing 608ZZ/2RS FOR power Tools with P6 Z3V3 and Special Seals

  • Deep Groove Ball Bearing 608ZZ/2RS FOR power Tools with P6 Z3V3 and Special Seals
  • Deep Groove Ball Bearing 608ZZ/2RS FOR power Tools with P6 Z3V3 and Special Seals
Deep Groove Ball Bearing 608ZZ/2RS FOR power Tools with P6 Z3V3 and Special Seals
Product Details:
Place of Origin: China
Brand Name: AHAHB/OEM brand
Certification: IS09001-2005/TS16949
Model Number: 608ZZ/2RS
Payment & Shipping Terms:
Minimum Order Quantity: 5000 PCS
Price: 0.1 TO 0.5USD
Packaging Details: SINGLE PACKING, TUBE PACKING
Delivery Time: 10 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 6000000 PCS/MONTH
Contact Now
Detailed Product Description
Application: Automotive, Electrical, Agricultural, Mining, Etc. Bearing Type: Deep Groove Ball Bearing
Bore Diameter: 10mm-100mm Clearance: C0, C2, C3, C4, C5
Grease: Lithium Grease, Lithium Soap Grease Material: Chrome Steel, Carbon Steel, Stainless Steel
Noise Level: Z1, Z2, Z3, Z4 Number Of Row: Single Row
Outer Diameter: 26mm-180mm Package: Plastic Tube, Carton, Wooden Pallet
Precision Rating: P0, P6, P5, P4, P2 Seals Type: Open, ZZ, 2RS
Series: 6000 Series Vibration Level: V1, V2, V3, V4
Width: 8mm-45mm

608 llu specially for hand tools with P6 Z2V2 and P6 Z3V3 quality, special non contact rubber seals' structurer.AHAHB can supply in very competitive price,with 100 percent inspection quality gurantee.

This bearing has Two Metal Shields (ZZ), Non-Connected to the Inner Ring to Protect the Bearing from Dust or any Possible Contamination....


  • 608 ZZ Deep Groove Ball Bearing dimensions: Bore Diameter 8mm, Outside Diameter 22mm, Width 7mm. 100% Chrome Steel. Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings (-30C to +180C)
  • Interchange to 608, 608 Z, 608 ZZ, 608 ZR, 608 2ZR, 608 2Z
  • This bearing has Shield on both sides, Non-Connected to the Inner Ring, to Protect the Bearing from Dust or any Possible Contamination. If your Application Requires a Ball Bearing with One Seal or Opened Without Seals, you can easily remove one or both Seals.
  • Application: 3D Printer, Skateboard, Inline Roller Skate, Scooter, Longboard, Bicycle, Hobby and Recreation Bearing, RC Car, Vacuum, Fishing Reel, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
  • Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.



Item 608-ZZ
Bearing Type Deep groove ball bearing
Bore Diameter 8.00 mm
Outside Diameter 22.00 mm
Width 7.00 mm
Width Inner Ring 7.00 mm
Width Outer Ring 7.00 mm
Dynamic Load Rating Cr 3450 N
Static Load Rating Cor 1370 N
Limiting Speed 38000 r/min
Clearance Normal
Tolerance Inner Ring 0 to -8 μm
Tolerance Outer Ring 0 to -9 μm
Tolerance Classes P0
Noise and Vibration Z1V1
Closures Shield on both sides
Lubrication Type Grease Shell RL2
Lubrication Temperature -20°C to +160°C
Rolling Element Indicator Ball
Material Gcr15
Product Weight 0.012 KG
