Product Details:
Place of Origin: China
Brand Name: AHAHB
Certification: IS09001-2005/TS16949
Model Number: UC206,UC206-17,UC206-18,UC206-19,UC206-20
Payment & Shipping Terms:
Minimum Order Quantity: 500 PCS
Packaging Details: SINGLE PACKING, industrial PACKING
Delivery Time: 10 DAYS
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 6000000 PCS/MONTH
Contact Now
Detailed Product Description
Type: Insert Bearing Seals Type: R3,F Series, Double Seals
Bore Size: 30mm Precision Rating: P0,P6,P5
Number Of Row: Single Row Feature: Long Life High Speed, Low Noise, Long Life .durable, Four Point Contact, High Precision
Vibration: V1 V2 V3 V4 Noise: Z1 Z2 Z3 Z4

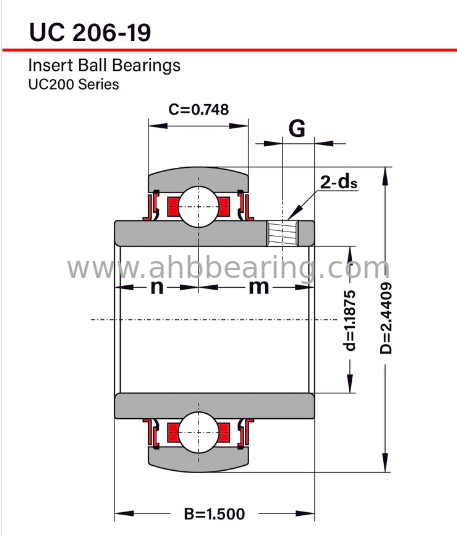

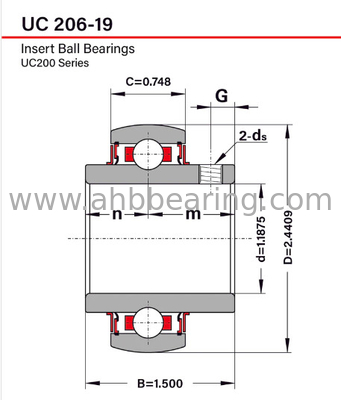

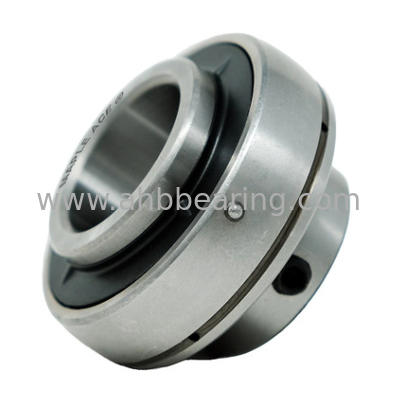

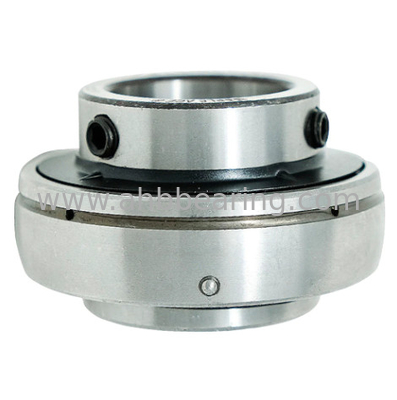

Product Name: Insert Bearing UC206-19

Anhui Anheng Bearing Co.,Ltd is a professional manufacturer for the insert bearing UC sereis,our products using guranteed raw material and with perfect quality.UC206-19   Our noise level can reach to Z3V3.



Bearing No. Shaft Dia. Dimension mm Dynamic load Statie load Weight (kg)
d in. ratings ratings (KN)
(in.) (mm) D B C S S1 G h ds Cr (KN) Cor (KN)
UC 201   12 47 1.8504 31 1.2205 16 0.6299 12.7 0.5000 18.3 0.7205 4.7 0.1850 4.4 0.1732 M6×1
1/4-28UNF		 9.88 6.65 0.19
201-8 1/2   0.19
202   15 0.19
202-9 9/16   0.19
202-10 5/8   0.19
203   17 0.19
203-11 11/16   0.19
204   20 0.17
204-12 3/4   0.18
UC 205   25 52 2.0472 34.1 1.3425 17
0.6693		 14.3 0.5630 19.8 0.7795 5.5 0.2165 4.3 0.1693 M6×1 1/4-28UNF 10.78 9.93 0.19
205-14 7/8   0.22
205-15 15/16   0.20
205-16 1   0.19
UC 206   30 62 2.4409 38.1 1.5000 19 0.7480 15.9 0.6260 22.2 0.8740 5.5 0.2165 5 0.1969 M6×1 1/4-28UNF 14.97 11.31 0.31
206-17 1-11/16   0.34
206-18 1-1/8   0.34
206-19 1-3/16   0.32
206-20 1-1/4   0.30
UC 207   35 72 2.8346 42.9 1.6890 20 0.7874 17.5 0.6890 25.4 1.0000 6.5 0.2559 5.8 0.2283 M8×1 5/16-24UNF 19.75 15.30 0.46
207-20 1-1/4   0.52
207-21 15/16   0.50
207-22 1-3/8   0.48
207-23 1-7/16   0.45
UC 208   40 80 3.1496 49.2 1.9370 21 0.8268 19 0.7480 30.2 1.1890 8 0.3150 6.3 0.2480 M8×1 5/16-24UNF 25.09 19.84 0.63
208-24 1-1/2   0.68
208-25 1-9/16   0.64
UC 209   45 85 3.3465 49.2 1.9370 22 0.8661 19 0.7480 30.2 1.1890 8 0.3150 6.8 0.2677 M8×1 5/16-24UNF 25.14 20.46 0.68
209-26 1-5/8   0.78
209-27 1-11/16   0.74
209-28 1-3/4   0.70
UC 210   50 90 3.5433 51.6 2.0315 24 0.9449 19 0.7480 32.6 1.2835 9 0.3543 6.5 0.2559 M10×1.25 3/8-24UNF 26.98 23.18 0.78
210-30 1-7/8   0.85
210-31 1-15/16   0.80
UC 211   55 100 3.9370 55.6 2.1890 25 0.9843 22.2 0.8740 33.4 1.3150 9 0.3543 7.2 0.2835 M10×1.25 3/8-24UNF 33.37 29.22 1.07
211-32 2   1.22
211-34 2-1/8   1.10
211-35 2-3/16   1.05
UC 212   60 110 4.3307 65.1 2.5630 27 1.0630 25.4 1.0000 39.7 1.5630 10.5 0.4134 8.2 0.3228 M10×1.25 3/8-24UNF 36.74 32.93 1.51
212-36 2-1/4   1.65
212-38 2-3/8   1.53
212-39 2-7/16   1.45
UC 213   65 120 4.7244 65.1 2.5630 29
1.1417		 25.4 1.0000 39.7 1.5630 12 0.4724 8 0.3150 M10×1.25 3/8-24UNF 44.01 40 1.86
213-39 2-7/16   1.96
213-40 2-1/2   1.94
UC 214   70 125 4.9213 74.6 2.9370 30 1.1811 30.2 1.1890 44.4 1.7480 12 0.4724 9 0.3543 M12×1.25 7/16-20UNF 46.8 45 2.05
214-43 2-11/16   2.04
214-44 2-3/4   2.06
UC 215   75 130 5.1181 77.8 3.0630 30 1.1811 33.3 1.3110 44.5 1.7520 12 0.4720 9 0.3543 M12×1.25 7/16-20UNF 50.8 49.5 2.21
215-47 2-15/16   2.3
215-48 3   2.13
UC 216   80 140
5.5118		 82.6
3.2520		 33
1.2992		 33.3
1.3110		 49.3
1.9410		 14
0.5512		 10.3
0.4055		 M12×1.25 7/16-20UNF 55.04 53.31 2.79
UC 217   85 150
5.9055		 85.7
3.3740		 35
1.3780		 34.1
1.3425		 51.6
2.0315		 14
0.5512		 11
0.4331		 M12×1.25 7/16-20UNF 63.98 63.89 3.38
217-52 3-1/4   3.59
UC 218   90 160
6.2992		 96
3.7795		 37
1.4567		 39.7
1.5630		 56.3
2.2165		 14
0.5512		 12
0.4724		 M12×1.25 1/2-20UNF 73.83 70.76 4.46
218-56 3-1/2   4.56

Tolerance Class

Standard Tolerance class
GB/T307.1 PO P6 P5 P4
IS0492 C LASSO CLASS6 CLASS5 CLASS4
AFBMA STD.20 ABEC1 ABEC3 ABEC5 ABEC7

Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel

Steel No Chemical Composition%
C Si Mn P S Cr
Gcr15 0.95-1.05 0.15-0.35 0.20-0.40 ≤0.027 ≤0.02 1.30-1.65

The Interchange of Chrome Steel No.

Country China ISO U.S.A Germany Japan Sweden
Bearings
Steel No.		 Gcr15 638/XVII 1 (AISI)52100 (DIN)100Cr6 (Jis)SVJ2 SKF3

Packing

Tube packing, single box packing or other industrial packing are all available.Special requirements should be mentioned in the order
