Name: #40 Roller Chain Single Strand 1/2" Pitch, 10 Feet plus 2 Connecting Master Links, 239 Links
Brand: Anhui Anheng Bearing Co.,Ltd
SKU: 40-1
Price: 0.10 USD
Availability: InStock

Home Products ROLLER CHAIN

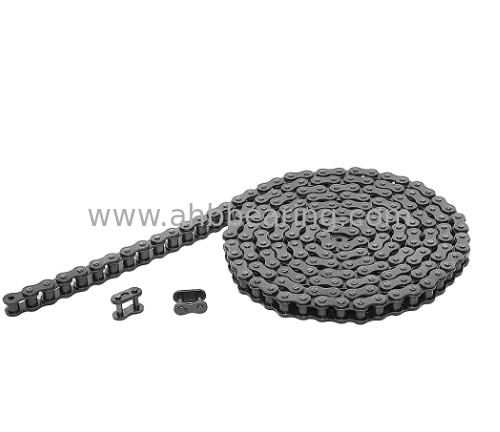

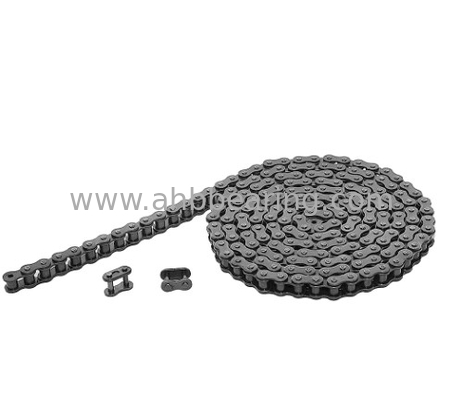

#40 Roller Chain Single Strand 1/2" Pitch, 10 Feet plus 2 Connecting Master Links, 239 Links

Product Details:

Place of Origin:	China
Brand Name:	AHAHB
Certification:	IS09001-2005/TS16949
Model Number:	40-1

Payment & Shipping Terms:

Minimum Order Quantity:	500 pcs
Price:	0.1 TO 0.5USD
Packaging Details:	SINGLE PACKING, industrial PACKING
Delivery Time:	10 DAYS
Payment Terms:	L/C, D/A, D/P
Supply Ability:	50000Pcs/month

Contact Now

Detailed Product Description

All the Chains from us are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant Higher tensile strength for superior impact resistance Heat treatment to...

Exclusively Produced by High Standard Factories
Ideal for Replacement and OEM Applications
All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
100% SATISFACTION GUARANTEED

Item	40-1
ANSI Chain number	40-1
BS/ISO Chain number	08A-1
Chain Length	10 ft
Number of Links	239L
Number of Strands	1
Chain Pitch Metric	12.7 mm
Chain Pitch Inch	0.5 in
Roller diameter d1 max Metric	7.95 mm
Roller diameter d1 max Inch	0.31 in
Width between inner plates b1 min Metric	7.85 mm
Width between inner plates b1 min Inch	0.31 in
Pin diameter d2 max Metric	3.96 mm
Pin diameter d2 max Inch	0.16 in
Pin length L max Metric	16.6 mm
Pin length L max Inch	0.65 in
Pin length Lc max Metric	17.80 mm
Pin length Lc max Inch	0.70 in
Plate height h2 max Metric	12.00 mm
Plate height h2 max Inch	0.47 in
Plate thickness T max Metric	1.5 mm
Plate thickness T max Inch	0.06 in
Ultimate Tensile Strength Q min	14.1 kN
Average Tensile Strength Q0	17.5 kN
Weight (kg/m)	0.62 kg
Weight (lbs/ft)	0.42 lbs
Material	Carbon/Alloy Steel
