Name: CA550 Agricultural Roller Chain 1.63" Pitch, 10 Feet plus Connecting Master Link
Brand: Anhui Anheng Bearing Co.,Ltd
SKU: CA550
Price: 0.10 USD
Availability: InStock

Home Products ROLLER CHAIN

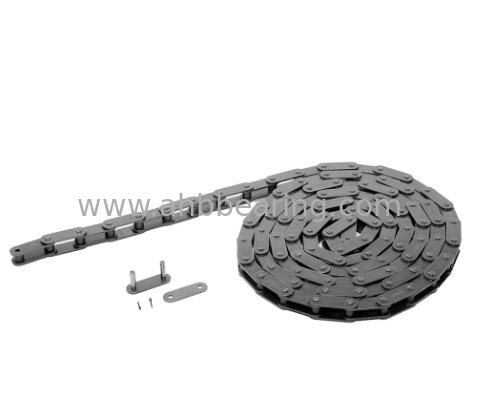

CA550 Agricultural Roller Chain 1.63" Pitch, 10 Feet plus Connecting Master Link

Product Details:

Place of Origin:	China
Brand Name:	AHAHB
Certification:	IS09001-2005/TS16949
Model Number:	CA550

Payment & Shipping Terms:

Minimum Order Quantity:	500 pcs
Price:	0.1 TO 0.5USD
Packaging Details:	SINGLE PACKING, industrial PACKING
Delivery Time:	10 DAYS
Payment Terms:	L/C, D/A, D/P
Supply Ability:	50000Pcs/month

Contact Now

Detailed Product Description

All the Chains from us are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant Higher tensile strength for superior impact resistance Heat treatment to...

Exclusively Produced by High Standard Factories
Ideal for Replacement and OEM Applications
All Maple Ace Chains are Shot-peened, Pre-loaded, Pre-lubricated, Wear-Resistant, and Fatigue Resistant
DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
100% SATISFACTION GUARANTEED

Item	CA550
Chain Length	10 ft
Number of Links
Number of Strands	1
Chain Pitch Metric	41.4 mm
Chain Pitch Inch	1.63 in
Roller diameter d1 max Metric	16.87 mm
Roller diameter d1 max Inch	0.664 in
Width between inner plates b1 min Metric	19.81 mm
Width between inner plates b1 min Inch	0.78 in
Pin diameter d2 max Metric	7.19 mm
Pin diameter d2 max Inch	0.283 in
Pin length L max Metric	35.0 mm
Pin length L max Inch	1.38 in
Pin length Lc max Metric	38.00 mm
Pin length Lc max Inch	1.50 in
Plate height h2 max Metric	19.30 mm
Plate height h2 max Inch	0.76 in
Plate thickness T max Metric	2.8 mm
Plate thickness T max Inch	0.11 in
Ultimate Tensile Strength Q min	39.10/8.886 kN/LB
Average Tensile Strength Q0	51.20 kN
Weight (kg/m)	1.940 kg
Weight (lbs/ft)	1.3 lbs
Material	Carbon/Alloy Steel

CA550 Agricultural Roller Chain 1.63" Pitch, 10 Feet plus Connecting Master Link
